The CLIM series units are designed to meet the comfort needs for larger spaces such as restaurants, malls, hotels, clinics, offices and industrial processes.

One of the biggest hallmarks of this series is its modular design, which allows increasing the system capacity by adding more units. The units are available in 7.5 TR to 12.5 TR. For a total installed capacity of 50 TR in air-cooled installations.

The CLIM series units have a reduced footprint, which facilitates the installation maneuvers by allowing access through service doors and elevators.


The CLIM line is the best option for staggered installations since they allow adding capacity under demand.

Standard Configuration

  • Available in cooling only
  • Capacities of 7.5, 10, and 12.5 Tons.
  • Modular tandem installation up to 62.5 Tons
  • Inverted and Fixed scroll compressors
  • Voltage 208 – 230/3/60
  • Microchannel condenser
  • 7” LED Color Touch Screen (Mother Modules)
  • Flow balancing valve
  • Ball isolation valve
  • Sonic water flow sensor
  • Expansion tank
  • MODBUS language
  • TCP/IP Connectivity
  • R-410A refrigerant
  • ISO-9227 Baked Paint (1,500-hour salt spray test)
  • AHRI certification
  • ETL certification
  • Meets ASHRAE 90.1
  • Eligible for LEED points
  • Victaulic water connections
  • Toothed axial fans (low noise)

Additional Configurations

  • Voltage 440/3/60 or 220/1/60
  • Available in Heat Pump
  • Anti-corrosive protection on the condenser and/or all the equipment (except electrical parts)
  • BACNET protocol
  • • EC Fans

Measurements

FOOTPRINT
7.5 Tons.10 Tons.12.5 Tons.
cmincmincmin
Width77.530 1/2”97.138 1/4”118.746 3/4”
Length80.631 3/4”80.631 3/4”80.631 3/4”
Height177.870”177.870”177.870”

Components

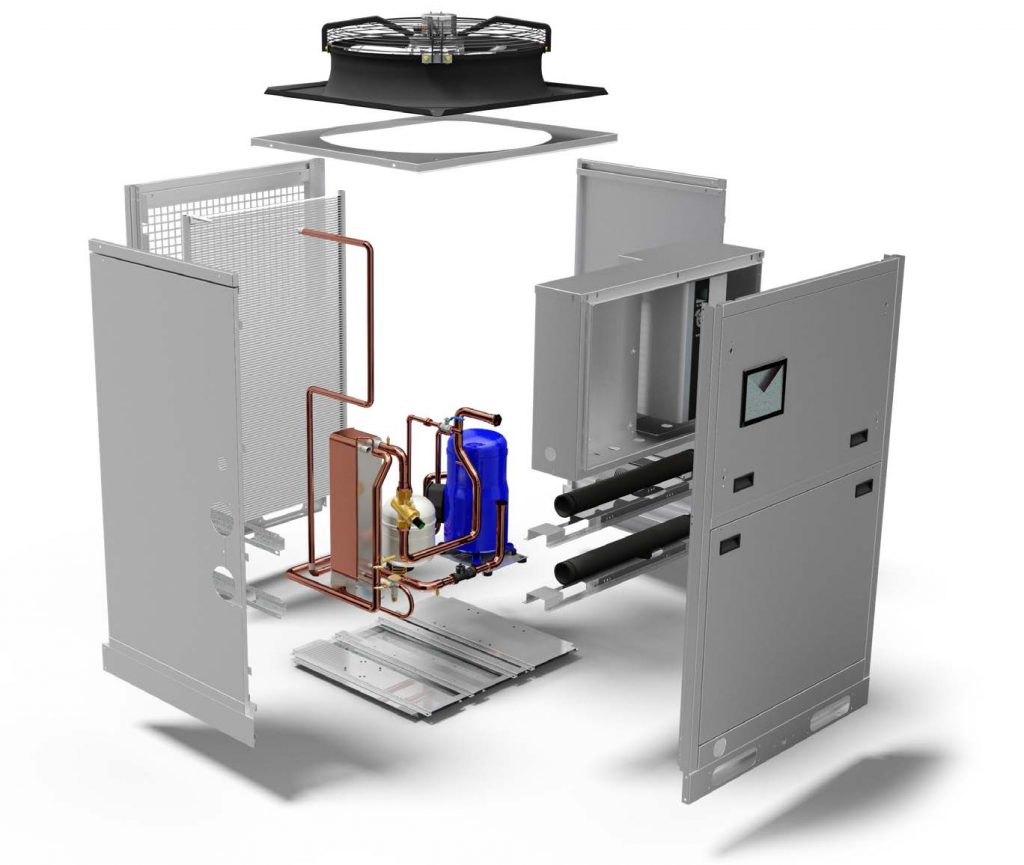

Explosionado CLIM Axial
